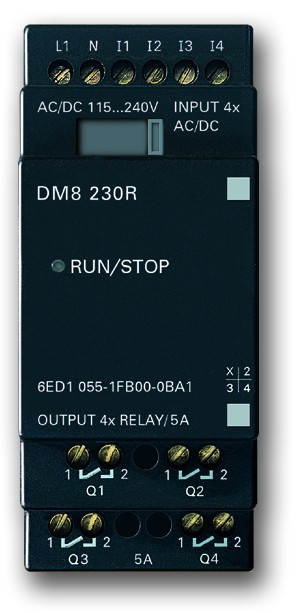

6ED1055-1FB00-0BA1

Documentation

Dokumentace na vyžádání

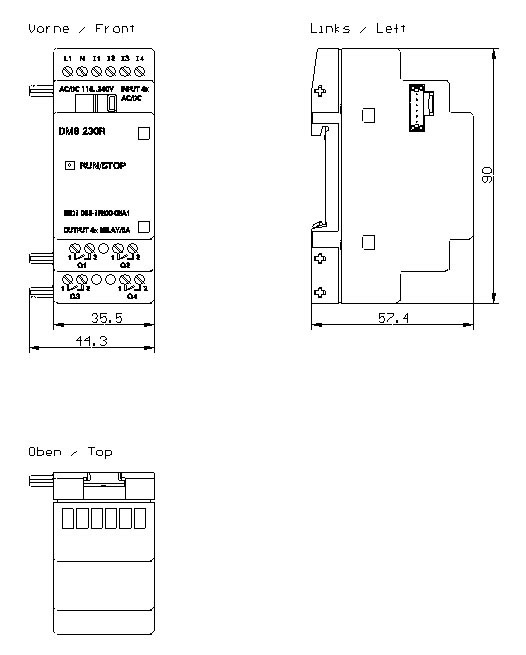

Dimensions

Description

•LOGO! digital modules DM8... are available for operation with 12V DC, 24V AC/DC and 115...240V AC/DC, and are equipped with four inputs and four outputs.
•LOGO! digital modules DM16... are available for operation with 24V DC and 115...240V AC/DC, and are equipped with eight inputs and eight outputs.
•LOGO! analog modules are available for operation with 24V DC and some with 12V DC, depending on the specific module.Each is equipped with two analog inputs, two Pt100 inputs or two analog outputs.
•The digital/analog modules are integrated in two or four subunits. Each one is equipped with two expansion interfaces for connecting additional modules.

LOGO! Basic may only be equipped with expansion modules of the same voltage class. Mechanical encoding pins in the housing prevent you from connecting devices of a different voltage class. Exception: The left-hand interface of an analog module or communication module is galvanically isolated. This type of expansion module can therefore be connected to devices of a different voltage class.
