YILMAZ REDÜKTÖR GEAR UNITS


Compact gearboxes are high-quality gearboxes for standard drives.  Yilmaz Redüktör is the world’s most renowned producers of gearboxes.

You can find more info at this Yilmaz Redüktör microsite.

go to the microsite




Compact gearbox request form


Our unique form will guide you through the gear configuration and selection and save time for you and our staff. You are a few clicks away from the complete demand.

go to the gearbox request form


Due to the complexity of the gearboxes’ configuration, the gearboxes cannot be purchased in our e-shop. Our specialists will be happy to help you make your selection. We will be happy to send you documentation, or design a suitable set directly, on request.

contact support

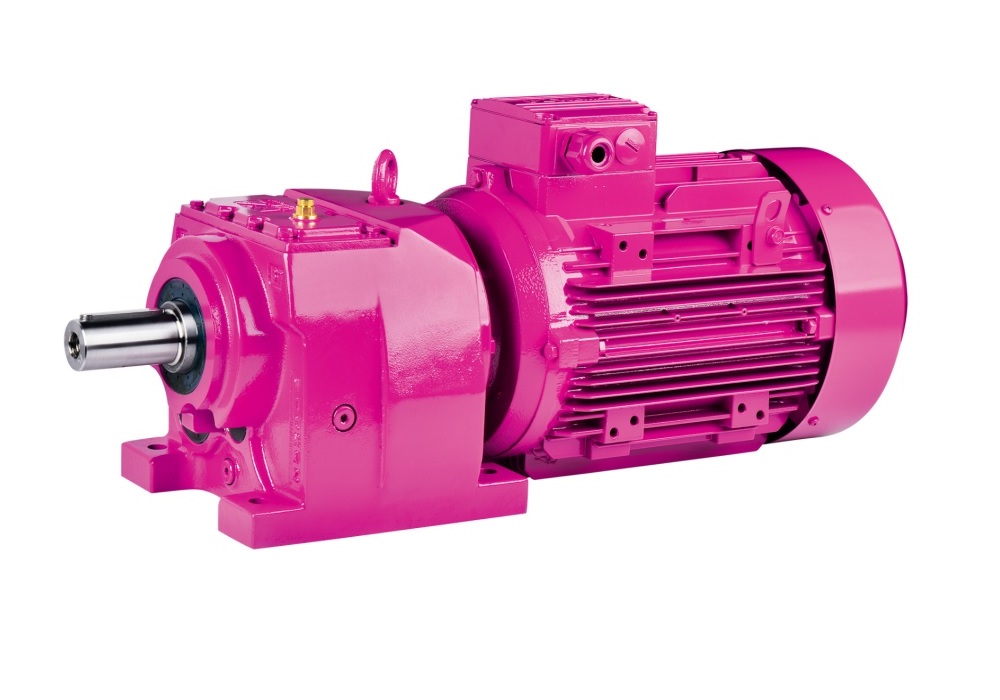

Foot-Mounted Helical

Key features:


13 different sizes, Torque range: 50 - 18.000 Nm, Speed range: 0.1 - 500 rpm

  • MR – Helical geared motors, foot mounted
  • MV – Helical geared motors with IEC B5/B14 motor flange, foot mounted
  • MN – Helical geared units with IEC B5/B14 motor flange, foot mounted
  • MT – Helical geared units with solid input shaft, foot mounted





Flange-Mounted Helical

Key features:


13 different sizes, Torque range: 50 - 18.000 Nm, Speed range: 0.1 - 500 rpm

  • NR – Helical geared motors, flange mounted
  • NV – Helical geared motors with IEC B5/B14 motor flange, flange mounted
  • NN – Helical geared units with IEC B5/B14 motor flange, flange mounted
  • NT – Helical geared units with solid input shaft, flange mounted








Worm

Key features:


8 different sizes, Torque range: 5 - 1.000 Nm, Speed range: 0.1 - 400 rpm

  • EV – Worm-geared motors with IEC B5/B14 motor flanges
  • EN – Worm-geared units with IEC B5/B14 flanges
  • ET – Worm-geared unit with solid input shaft








Hollow Shaft Helical

Key features:


10 different sizes, Torque range: 130 - 18.000 Nm, Speed range: 0.1 - 350 rpm

  • DR – Helical geared motors, direct coupled flange
  • DV – Helical geared motors with IEC B5/B14 motor flange
  • DN – Helical geared units with IEC B5/B14 motor flange
  • DT – Helical geared units with solid input shaft





Bevel-Helical

Key features:


10 different sizes, Torque range: 80 - 15.000 Nm, Speed range: 0.1 - 400 rpm

  • KR – Bevel geared motors, direct coupled flange
  • KV – Bevel geared motors, IEC B5/B14 flanged input
  • KN – Bevel geared units, IEC B5/B14 flanged input
  • KT – Bevel geared units, solid input shaft
