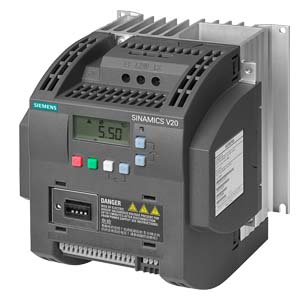

Frequency Converters Sinamics V20 for 1AC200-240V with filter

6SL3210-5BB21-1BV1

Producer: SIEMENS

V20 FSB
6SL3210-5BB21-1BV1
Siemens is offering a simple and cost-effective drive solution with its compact SINAMICS V20 Basic Performance inverter. SINAMICS V20 sets itself apart as a result of its quick commissioning times, ease of operation, robustness and cost-efficiency. With five frame sizes, it covers a power range extending...

More information

go to configuration
Doba dodání: on request Guarantee period: 12 months
Product specifications
input voltage (V) 1AC 200 ... 240 V +10% -10%
max. output voltage (V) 3AC 230 V
output frequency MIN (Hz) 0 ... 550
power (kW) 1,10
power output (LO) (kW (LO)) 1,10
Rated output current (A) 6
digital inputs (DIN) 4, PNP/NPN
analog inputs (AIN) 2
analog output (AOUT) 1
control methods U/f - lineární, u/F – kvadratická, Vícebodová U/f, FCC, PID regulace, Eco režim
communication interf RS232/RS485
Size FSAC
protection IP20

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Description

Siemens is offering a simple and cost-effective drive solution with its compact SINAMICS V20 Basic Performance inverter. SINAMICS V20 sets itself apart as a result of its quick commissioning times, ease of operation, robustness and cost-efficiency. With five frame sizes, it covers a power range extending from 0.12 kW up to 30 kW.
SINAMICS V20 Framesize FSA to FSE, with power range 0.12 kW up to 15 kW

Push-through and wall mounting – side-by-side possible for both USS and MODBUS RTU at terminals
Integrated braking chopper from 7.5 kW to 30 kW (10 hp up to 40 hp)
Parameter loading without power supply
Integrated application and connection macros
Keep Running Mode for uninterrupted operation
Wide voltage range, advanced cooling design and coated PCBs increase robustness
Easy to save money
ECO mode for V/f, V2/f
Hibernation mode
DC coupling
Overload capability for FSE (High - and Low Overload)

Voltage and power range:
1AC 200 V - 240 V, ±10 %;
3AC 380 V - 480 V +10 % / -15 % 0.12 kW - 15 kW

SINAMICS V20 has a compact design, and can be individually adapted to the particular application or user requirements using various options (for example, an external BOP, connecting cable, filter, braking resistors, shielding, ...). The compact and rugged devices are tailored for operating pumps, fans, compressors and conveyor belts as well as for basic drive applications in the process and manufacturing industries.
