6ED1052-1MD00-0BA7

Producer: SIEMENS

6ED1052-1MD00-0BA7

This product is not available. Please, choose an alternative.

Product specifications

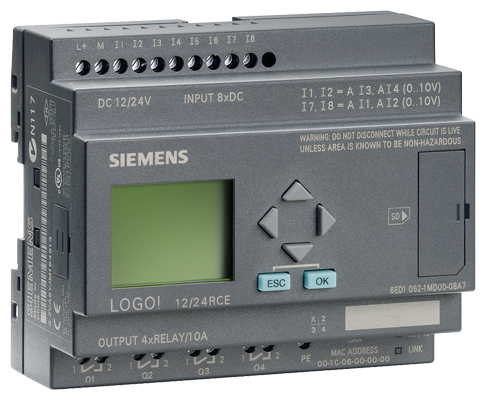

Description	LOGO! 12/24 RC
Supply voltage	12/24V DC
Permissible range (V)	10,8 - 28,8 DC
Short-circuit protection	NE, nutná externí ochrana
digital inputs (DIN)	8 z toho 4 jdou použít jako analogové (0...10V)
Digital outputs (DO)	4
Switching capacity of the contacts	10A s odporovou zátěží, 3A s indukční zátěží
Integrated display (Display)	YES
Integrated operator panel (OP panel)	YES
Real time clock (clock)	YES
protection	IP20
Mounting	DIN lišta 35mm
Ethernet interface	YES
SD card slot	YES

Compare a product

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Dokumentace na vyžádání

Dimensions

Description

LOGO! Basic (0BA7)
The highlight of the 0BA7 basic devices is without a doubt the standard Ethernet interface, as a programming interface and for communicating with other LOGO! 0BA7 basic devices or SIMATIC automation components such as SIMATIC S7 CPUs, HMI Panels, and PCs.
A maximum of 8 LOGO!s can be networked
Data logging
Standard SD cards as the storage medium
Program and connection compatible with LOGO! 0BA6

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	3RK1400-0CE10-0AA2 - LOGO!CM ASI	LOGO!CM AS Interface ; 30V DC ; 4DIN ; 4DO ; AIN ; AOUT ;	125,00 EUR	Detail - 3RK1400-0CE10-0AA2 - LOGO!CM ASI
	6AG1057-1AA00-0AA1 - LOGO! čelní rámeček	LOGO! čelní rámeček; šířka 8 jednotek, IP 65, montáž na panel ;	101,00 EUR	Detail - 6AG1057-1AA00-0AA1 - LOGO! čelní rámeček
	6AG1057-1AA00-0AA2 - LOGO! čelní rámeček	LOGO! čelní rámeček; šířka 8 jednotek, IP 65, montáž na panel, včetně ovl. tlačítek ;	101,00 EUR	Detail - 6AG1057-1AA00-0AA2 - LOGO! čelní rámeček
	6AG1057-1AA00-0AA0 - LOGO! čelní rámeček	LOGO! čelní rámeček; šířka 4 jednotky, IP 65, montáž na panel ;	59,20 EUR	Detail - 6AG1057-1AA00-0AA0 - LOGO! čelní rámeček
	6BK1700-0BA00-0AA2 LOGO!CM EIB/KNX	LOGO!CM EIB/KNX ; 24V AC/DC ; virtual max. 16DIN ; virtual max. 12DO ; virtual max. 8AIN ; virtual max. 2AOUT ;	0,00 EUR	Detail - 6BK1700-0BA00-0AA2 LOGO!CM EIB/KNX
	6ED1055-1CB00-0BA0	LOGO! DM8 24 ; 24V DC ; 4DIN ; 4 (Tranzistorové)DO ; IP20 ;	0,00 EUR	Detail - 6ED1055-1CB00-0BA0
	6ED1055-1CB10-0BA0	LOGO! DM16 24 ; 24V DC ; 8DIN ; 8 (Tranzistorové)DO ; IP20 ;	0,00 EUR	Detail - 6ED1055-1CB10-0BA0
	6ED1055-1HB00-0BA0	LOGO! DM8 24R ; 24V AC/DC ; 4(Volitelně PNP,NPN)DIN ; 4 (Reléové)DO ; IP20 ;	0,00 EUR	Detail - 6ED1055-1HB00-0BA0
	6ED1055-1MA00-0BA0	LOGO! AM2 ; 12/24V DC ; 2 (unipolar)AIN ; 0 ... 10V DC or 0 ... 20mA ; IP20 ;	0,00 EUR	Detail - 6ED1055-1MA00-0BA0
	6ED1055-1MD00-0BA1	LOGO! AM2 RTD ; 12/24V DC ; 2 ; Resistance thermometer Pt100,Pt1000 ; -50 ... 200°C ; IP20 ;	0,00 EUR	Detail - 6ED1055-1MD00-0BA1
	6ED1055-1MM00-0BA1	LOGO! AM2 AQ ; 24V DC ; 0AIN ; 0 ... 10V DC, 0/4 ... 20mA ; IP20 ;	0,00 EUR	Detail - 6ED1055-1MM00-0BA1
	6ED1055-1NB10-0BA0	LOGO! DM16 24R ; 24V DC ; 8DIN ; 8 (reléové)DO ; IP20 ;	0,00 EUR	Detail - 6ED1055-1NB10-0BA0
	6ED1055-4MH00-0BA0 - LOGO! TD	4-line text display, can be connected to all LOGO! 0BA6 Basic and Pure versions, including connecting cable ;	0,00 EUR	Detail - 6ED1055-4MH00-0BA0 - LOGO! TD
