1LG4186-6AA

Producer: SIEMENS

1LA.. / 1LG.. motors
1LG4186-6AA
Three-phase squirrel-cage motor, energy saving. Basic line suitable for using in all kinds of standard drives applications including fans, pumps, conveyor belts, etc.). Suitable also for frequency converter driven applications.
Basic design description: TEFC self cooling motor IC411, for continuous...

More information

This product is not available. Please, choose an alternative.
Product specifications
power (kW) 15
speed (rpm) 970
efficiency EFF2
number of poles (pole) 6
motor housing litina/cast iron
protection IP55
motor frame size 180L
insulation class F
basic voltage (V) 400/690V D/Y 50Hz; 460V D 60Hz
rated imput current (A) 29,5/17,1
output torque (Nm) 148
weight (kg) 150
motor load S1
bearings DE/NDE 6210 ZC3 / 6210 ZC3
Polarity :: 6-pole (1000 rpm) Efficiency :: IE1 (Standard Efficiency) Ex-proof design :: No protection - only for non-hazardous area Ex-proof design :: Zone 2 possible Ex-proof design :: Zone 21 possible Ex-proof design :: Zone 22 possible Operation type :: DOL / VSD Availability EXW :: Approx. 4 – 5 weeks Motor body :: Cast Iron Product status :: Clearance sale
Polarity Efficiency Ex-proof Operation Avail. Material Status

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor voltage

Motor design

Product configuration (voluntary options):

IE1 motors in accordance with directive EU 2009/12

mandatory option

thermal protection

modular extensions

brake voltage

(available only in combination with G26 or F01 option)

manual brake release

(available only in combination with G26 or F01 option)

other pulse generators

other voltages

bearings

locating bearings

regreasing device

test certificates

national certificates and standards

protection degree

terminal box position

terminal inputs position

shaft extension

rotor balancing

windings heating

windings and insulation, increased ambient tempera

low ambient temperature

increased air humidity

design for Zone 2, 21 or 22

(not available in combination with modular extensions)

other motor design

Documentation

Dokumentace na vyžádání

Dimensions

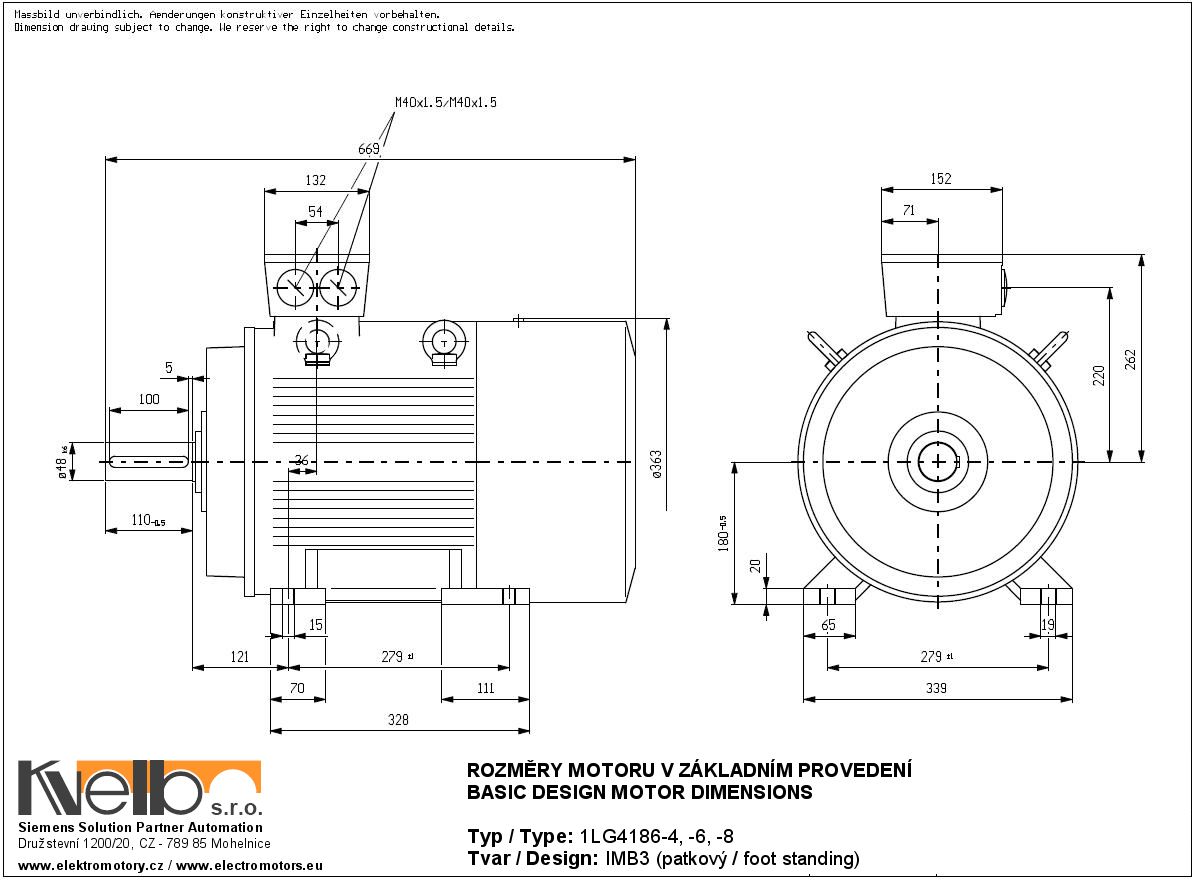

1LG4186-4,6,8 IMB3 (foot-standing) dimensions
1LG4186-4,6,8 IMB3 (foot-standing) dimensions

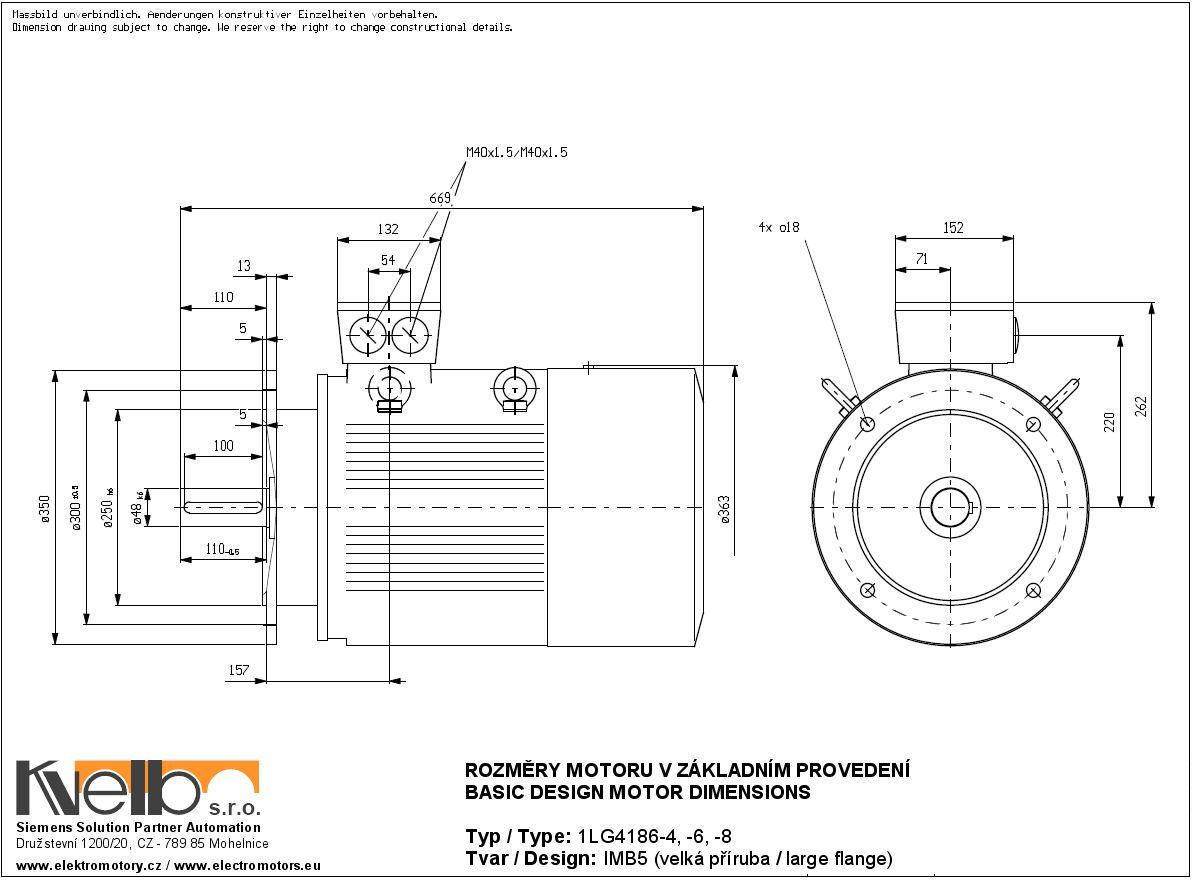

1LG4186-4,6,8 IMB5 (large flange) dimensions
1LG4186-4,6,8 IMB5 (large flange) dimensions

Description

Three-phase squirrel-cage motor, energy saving. Basic line suitable for using in all kinds of standard drives applications including fans, pumps, conveyor belts, etc.). Suitable also for frequency converter driven applications.

Basic design description: TEFC self cooling motor IC411, for continuous duty S1, ambient temperature -20 to +40°C, altitude up to 1000 m a.s.l., without thermal protection
